Compact Two Channel Trace Gas Mixer (16 -160 ml/min Flowmeter) - EQ-CGM-2F

**Important Notice**
This is our archived version of MTI old website. Price, inventory, and technical information IS NOT accurate. Please do not use them as factors for purchasing decisions. Please navigate our new web MTI's New Website. Thank you for your understanding!

NOTE: ARCHIVE SITE

If you are international, please click this.

In stock

Item Number: CGM2F

Quantity:

Email this page to a friend

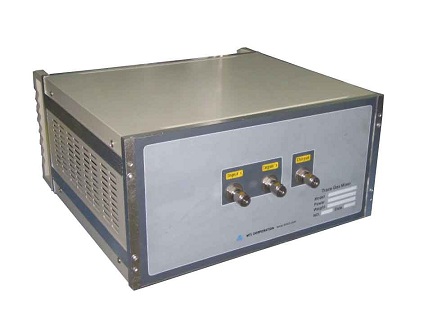

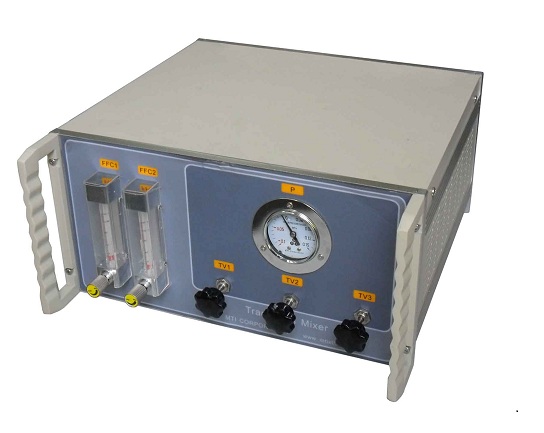

CGM-2F is a compact two-channel trace gas mixer for inert gas control in small tube furnaces, glove boxes, plasma cleaner, small PECVD system. This mixer regulates both line pressure and flow rate, and assures that you get the precise mixture at a lower cost and compact design. You can easily adapt this unit to most operations in atmospheric chambers.

SPECIFICATIONS

Floating Flow-meter	Two Floating Flow-meter with flow rate range from 16 to 160 mL/min
Mix Tank	One stainless steel mix tank built in for better gas mixing
Mechanical Pressure Gauge (mixing tank)	0 - 1.0 MPa, (0.02 MPa/grit)
Fittings & Valves	Three Pipe fittings for 1/4" pipe (nylon or stainless steel) Three vacuum needle valves made of SS304
Compact size	360 L x 380 W x 200 H (mm)
Operation Manual
Warranty	One year limited with lifetime support
Net Weight	14lbs
Shipping Weight & Dimensions	28 lbs; 19"x18"x12"

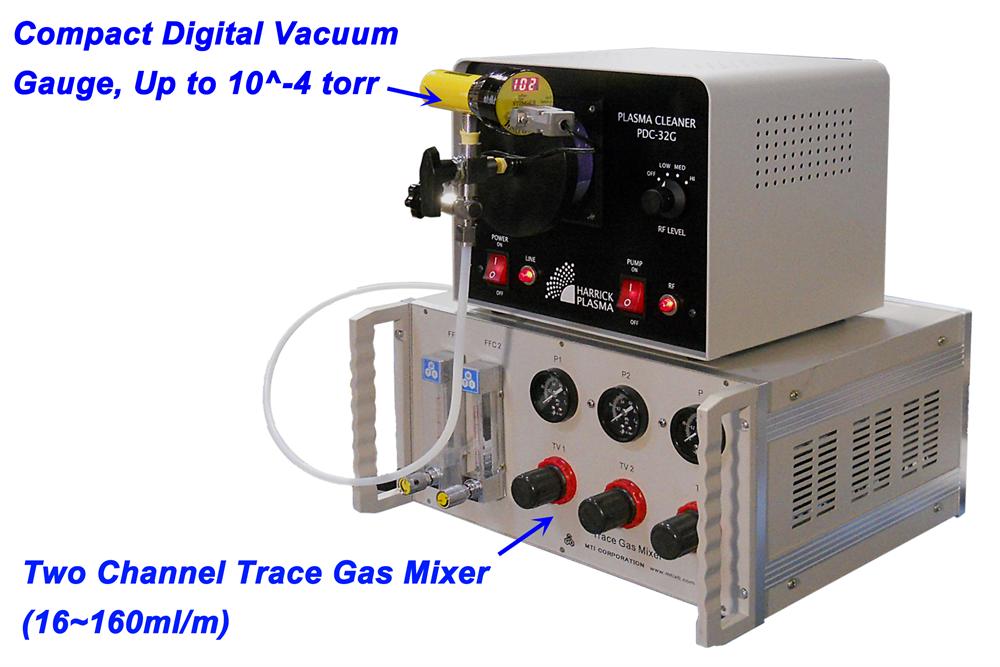

	Click the picture below-left to see the details of Mini CVD Tube Furnace with 2 channels Gas Mix System OTF-1200X-S50-2F Click the Pic below-right to see how to use together with a Plasma cleaner
