1200C Tube Furnace with Internal Travel Mechanism For HPCVD - OTF-1200X-S-HPCVD
|
Click to enlarge
|
Please email for lead time
Item Number: OTF1200XSHPCVD
Transported by LTL Freight (Truck)
|

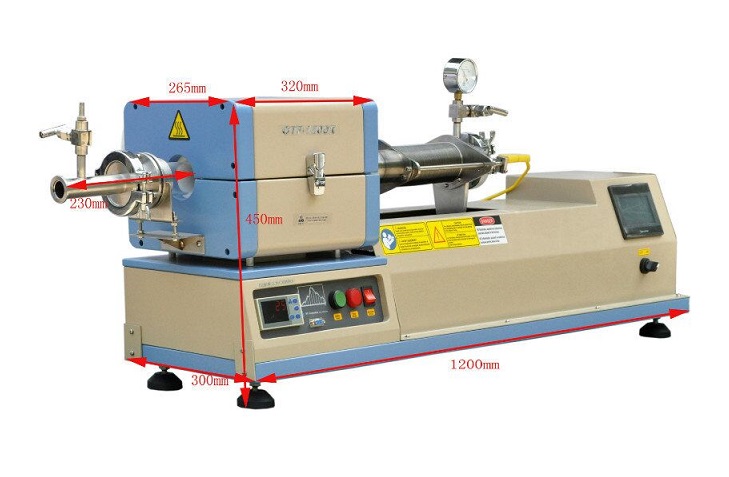

OTF-1200X-S-HPCVD is a compact 2" split tube furnace with an internal sample traveling system inside the processing tube. This allows the position & temperature control of the sample stage or crucible via touch screen digital controller. It is designed for multi-functional rapid thermal processing, such as hybrid physical-chemical deposition(HPCVD), rapid thermal evaporation (RTE), and as well Horizontal Bridgman Crystal Growth ( HDC) under various atmospheres for new-generation crystal research.
SPECIFICATIONS:
|
Split Tube Furnace
|
- 208 - 240 VAC, 50/60Hz, 1.2 KW max. power consumption
- Working temperature: 1100°C continuous and 1200°C Max.
- 2" quartz tube (50mm O.D x 44mm I.D x 450mm L) with vacuum-sealed flanges.
- Optional: you may choose a dual-zone tube furnace at Pic below right at extra cost to create a higher thermal gradient or longer constant temperature zone
   -- two-zone furnace
|
|
Temperature Control
|
|
|
Vacuum Sealing
|
- 2" quick clamp flange with 1/4'' fittings, vacuum gauge as well as needle valve on the right side
- The right flange is connected to a stainless steel bellow which is stretchable up to 150 mm.
- Left flange with quick-clamped KF25 vacuum port and 1/4'' barb venting valve
- Max. Vacuum level: 10E-2 torr by mechanical pump and 10-E5 by turbopump
 (click the picture to see details )
|
Internal Traveling Mechanism &
PLC Control Panel
|

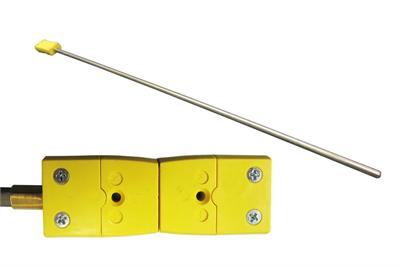

- One 1/4" Dia. x 24'' long K-type thermal couple is inserted through the right flange to support a mini-crucible boat in the chamber. (click pic.1 to view)
- A step motor ( 24VDC, 100W) drives the crucible inside the tube from the heating center to the right end of the furnace, L100 mm max. with air-tight
- Touch screen panel allows control of travel distance and temperature display of crucible position (click pic.2 )
- Traveling speed is constant at 180mm/ min. ( variable speed control is available upon request at additional cost )
- A 50x20x20mm mini-crucible boat (~20ml) is installed on a thermal couple (click pic.3 to view).
- AIN Sample Holder or Graphite Flat Substrate Holder for the wafer is available upon request, additional customization fee will apply (click pic.4 to view).

Pic.1 Pic.2 Pic.3 Pic.4 Pic.5
|
Max. Heating & Cooling Rate
|
The max heating and cooling rate can be achieved by moving the sample into the pre-heated hot zone and moving the sample out from the hot zone. The typical ramp/cool rate is listed in below:
|
Heating Rate:
10°C/sec (150°C - 250°C);
7°C/sec (250°C - 350°C);
4°C/sec (350°C - 500°C);
3°C/sec (500°C - 550°C);
2°C/sec (550°C - 650°C);
1°C/sec (650°C - 800°C);
0.5°C/sec (800°C - 1000°C);
|
Cooling Rate:
10°C/sec (950°C - 900°C);
7°C/sec (900°C - 850°C);
4°C/sec (850°C - 750°C);
2°C/sec (750°C - 600°C);
1.5°C/sec (600°C - 500°C);
1°C/sec (500°C - 400°C);
0.5°C/sec (400°C - 300°C);
|
|
|
|
Optional Parts
|
- You may need a right-angle valve & bellows to connect a vacuum pump ( click the 1st & 2nd pics to order )
- Anti-Corrosive digital Gauge up to 10E-5 torr is optional for CVD application (Pic 3)
- You may order a multi-channel gas delivery system for DVD or CVD operation ( Pic 4)
    |
|
Dimensions
|
 ( Click Pic to see details )
|
|
Warranty
|
One-year limited warranty with lifetime support (Consumable parts such as tubes and o-rings are not covered by the warranty) |
Laptop, software (Optional)

|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
- Labview-Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
|
|
Compliance
|
- CE Certified
- NRTL or CSA certification is available upon request at extra cost.
|
Warning
|
- Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bars / 3 psi
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
- Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
|
| Operation Video |
  |
| Application Notes |
This multi-functional furnace is suitable for the applications in below:
- RTE: Crucible loaded with evaporation material is placed in the center of the furnace, and moves sample holder to a downstream position with the appropriate temperature where the deposition takes place.
- HPCVD： Similar setup as RTE, we also introduce reactant gas to mix with evaporation vapor and make a deposition
- Horizontal Bridgman Crystal Growth： Load material and seed into a crucible and place it in the center of the furnace. Move the crucible at the desired speed to grow a single crystal under a suitable thermal gradient.
- If you have any questions or suggestions, please contact us before purchasing
- After CVD, the graphene must be transferred from the metal catalyst to another substrate for most applications. By using the graphene transfer tape, the residue can be low
- For Horizontal directional crystalization (HDC), you may use a gas feedthrough as in the pic below：
|
|
|
|
|
|
|
|
|
Sale Price: Starting at USD$9,998.00
|
|
