Three Zone Alumina Tube Furnace with Vacuum* Flanges (60, 80 or 100mm OD. 1700C Max.) - GSL-1700X-60-III
Important Notice
This is our archived version of MTI old website.
Price, inventory, and technical information IS NOT accurate. Please do not use them as factors for purchasing decisions.
Please navigate our new web MTI's New Website. Thank you for your understanding! |
|
|
Transported by LTL Freight (Truck)
Product Options
| Tube Size: |
|
Personalization
Upgrade to Eurotherm Temp controller (6 zone) +15" Laptop+ USB Cable
|
GSL-1700X-60-III is a CE certified 60mm or 80mm OD three zones tube furnace with complete vacuum sealing flange. Each heating zone is 12" in length and controlled by three precision 30 segments of digital temperature controllers independently. One zone (center zone) is heated by Super-1800 MoSi2 elements up to 1700°C, and another two zones are heated by SiC elements up to 1400°C. The tube furnace can create the various thermal gradient by adjusting three zones temperature. It is an excellent furnace to prepare functional materials under thermal gradient, and also can be used for epitaxial film growth by CVD.
SPECIFICATIONS
|
Furnace Structure
|
- Double-layer steel case with two cooling fans, which ensure low surface temperature
- High purity fibrous alumina insulation for energy saving
|
|
Power
|
10KW |
|
Voltage
|
AC 208-240 Single Phase, 50/60 Hz |
|
Max. Temperature
|
Zone one: 1400 °C (1500 °C<1hour), Zone two: 1700 °C Zone Three: 1400°C (1500 °C<1hour) |
|
Max. Heating Rate
|
<=10 °C /min |
|
Normal Heating/cooling Rate
|
5°C /min |
|
Thermal Block Placement
|
- Two thermal blacks are included. Please picture below to learn how to place them inside the tube

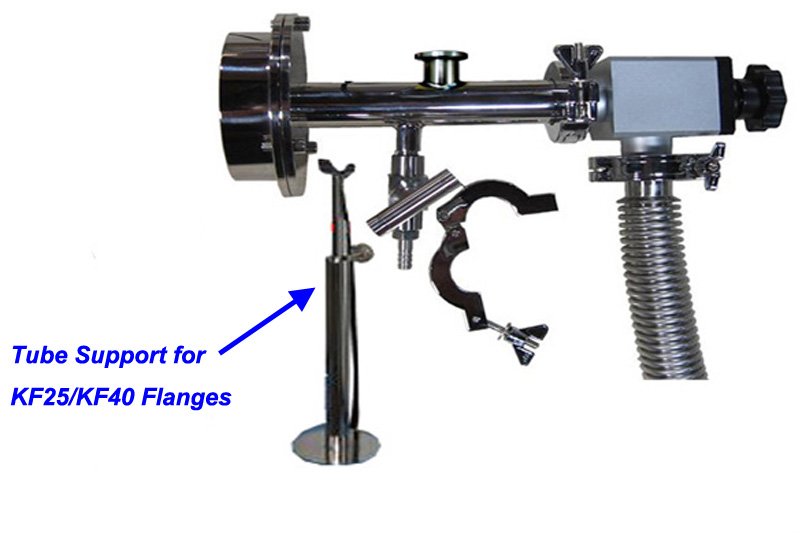

- You may order flange support to avoid tube rotating ( click Pic below right )
 .jpg) |
| Heating Zone Length |
- Three zones: total 25" (630 mm) heating zone (included two refractory separators)
- Zone 1: 7.5" (190 mm) heated by 4 pcs U type SiC(30x300 mm)
- Working temperature 400 - 1400°C (1500 °C<1hour)
- Heating rate: 10°C/min
- Zone 2: 10" (250 mm) heated by 6 pcs U type MoSi2(30x300 mm)
- working temperature 800 - 1700°C
- Max. Heating rate: 5°C/min
- Zone 3: 7.5" (190 mm) heated by 4 pcs U type SiC(30x300 mm)
- Working temperature 400 - 1400°C (1500 °C<1hour)
- Max. Heating rate: 10°C/min
- Constant Temperature Zone Length ( 3 controllers at the same temperature): 200mm with+/- 1C)
|
|
Tube Size and Flange
|
- 99.8% purity Alumina Tube
- 2-3/8" ( 60mm) O.D.x 2-1/8"I.D. (54mm) x 48" (1200mm) Length
- 60 mm stainless steel vacuum sealing flange with valve and meter is included
- Two porous ceramic blocks are included for protecting flange from heating radiation
- Vacuum pressure can reach to 10-4 torr with the turbo vacuum pump
|
Fitting Ports
 |
- In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click underline to order.
-
For supplying high-pressure gas, you may replace the standard barbed hose fitting with the Swagelok Tube Fitting, please click underline to order
|
|
Temperature Controllers
|
- Three digital controllers with microprocessor-based PID control and self-tuning
- Each has 30-segments programmable with protection for overheated and broken thermocouple
- Temperature Accuracy: +/- 1ºC
- Thermal Couple: One B type(210mm long TC for the central zone), two S type (210mm long TC for side zones)
|
|
European Temperature Controllers (optional upgrade)
|
- 1 heating channel
- 1 program of 8 or 24 segment
- Alarm Relay: Form 'A' and Form ‘C’ built-in
- Digital Communications: RS485
- Temperature Accuracy: ± 0.1ºC
- Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
|
Power Cable & Plug
 |
- 10 feet length 8-3 AWG heavy duty UL approved power cable is included
- Extra length cable can be ordered by click picture left
- The plug is not included. You can order from the local hardware store according to female plug in your lab
|
|
Dimensions
|
863 L x 457 W x 711 H mm (34 L x 18 W x 28 H inch) |
|
Net Weight
|
150 kg |
|
Warranty
|
One year limited warranty with lifetime support(Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacement at related products below.)
|
|
Laptop, software Control

|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
- Labview Based Temperature Control System (EQ-MTS01) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters operating range.
|
|
Compliance
|
- CE Certified
- NRTL or CSA Certification is available upon request, additional charges will apply
-

|
| Operation Instructions |
  |
|
Shipping Package Size After Crating
|
47"x45"x45"(1200L x 1150W x 1150Hmm) |
|
Shipping Weight
|
180 kg |
|
Application Notes
|
|
|
Optional Parts
|
|
Warnings
 Please click here to learn the installation of a gas regulator. |
- The tube furnaces with alumina tube are designed for use under vacuum and low pressure < 0.02 Mpa / 0.2 Bar/ 3 PSI
- Never use graphite crucible in the alumina tube.
- Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
- The gas flow rate should be limited to < 200 SCCM ( or 200ml/min )
- Vacuum limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C
|
|
|
