Rechargeable In-Line Trap to Prevent Backstreaming in Vacuum Pump-EQ-SAT25A-LD
Important Notice
This is our archived version of MTI old website.
Price, inventory, and technical information IS NOT accurate. Please do not use them as factors for purchasing decisions.
Please navigate our new web MTI's New Website. Thank you for your understanding! |
|
|
Please email for lead time
Item Number: SAT25
|
The Assimilation Traps are used between the rough vacuum pump and the diffusion (or turbo) pump to prevent backstreaming of oil into the diffusion pump. In addition, these traps prevent particulate matter from entering the vacuum pump.
AssimilationTraps have the added feature of a replaceable filtering element. This allows easy replacement once it becomes contaminated, clogged, or corroded. A variety of different filtering mediums are available for specific applications described below. The quick clamp seal incorporates a Viton gasket to provide a good vacuum seal. In addition to the elements listed, the user could incorporate his own medium into the assimilation trap for special applications. For example, if a lot of acidic compounds were to be pumped by the vacuum pump, NaOH or other basic compounds could be used in the trap to neutralize acids, and aluminum oxide filtering material could be used for high-efficiency filtering.
Specification
|
Body Dimensions(W x L)
|
Bottom |
Top |
Capacity |
| 3" x 6 3/4" |
NW25 Flange |
NW25 Flange |
17cfm |
Assimilation TrapElements
The standard element is coarse OFHC (oxygen free hard copper). Optional filtering elements are available as described below at extra cost.
Coarse grade OFHC copper elements are standard. They provide a large surface area for condensing oil vapors. The pure copper surface attracts hydrocarbons due to its high affinity for that type of compound.
Coarse grade stainless steel is for applications where a copper element is not desirable due to the reactivity of copper with certain chemicals.

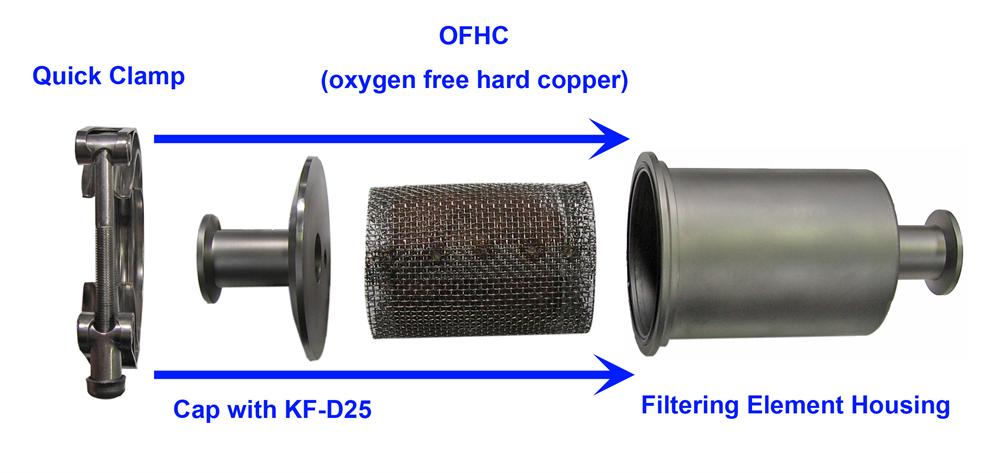

Please click the picture above to see detail construction
 Attention: Trapping elements should be replaced every 6 months
|
Sale Price: Starting at USD$2,398.00
|
|
|
|
