24"L 3-Zone Tube Furnace w/ Optional Quartz Tube & Flange (60 - 130mm, 1200C Max.) -OTF-1200X-III-S-UL


Important Notice
This is our archived version of MTI old website.
Price, inventory, and technical information IS NOT accurate. Please do not use them as factors for purchasing decisions.
Please navigate our new web MTI's New Website. Thank you for your understanding!





NOTE: ARCHIVE SITE
If you are international, please click this.
Transported by LTL Freight (Truck)

Product Options

UL/CSA certification:
furnace chamber size:

Personalization

Upgrade to Eurotherm Temp controller (6 zone) +15" Laptop+ USB Cable

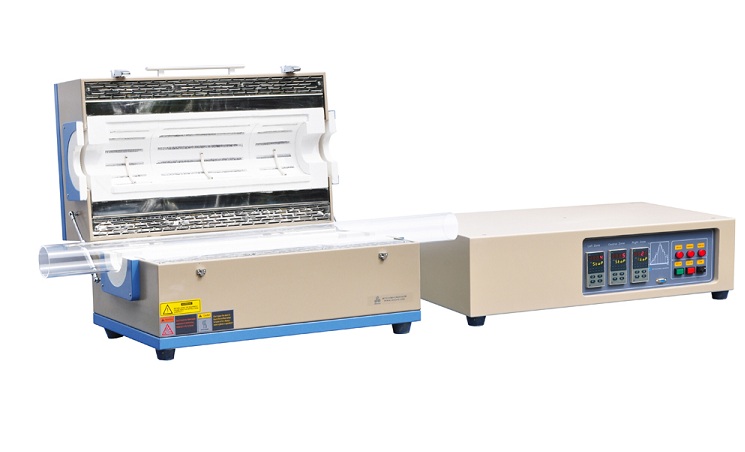

OTF-1200X-III-S is 24" Long ( 6"+12"+6")  split-able three-zone tube furnace with quartz tube (size selectable) and conventional flange. Three 30 segments temperature controllers are installed with K-type thermal couples. Microprocessor-based self-tuning PID provides excellent control with no overshooting and  +/- 1 °C accuracy. It is an excellent furnace for sample annealing, diffusion, and sintering in the various gas atmosphere up to 1200°C.

 SPECIFICATIONS:
Furnace structure
  • Double-layer steel case with two cooling fans which ensure low surface temperature;
  • Energy-saving high purity fibrous alumina insulation;
  • Two fibrous ceramic tube blocks are included for blocking heat radiation from inside of the tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
  • Quartz block (Optional) is ideal for more cleanness and a higher achievable vacuum.
  • The furnace can be separated from the temperature controller and place it on remote location

            Click here to choose a crucible
Rated voltage
 AC 208-240V Single Phase, 50/60 Hz (30A breaker required; Powder cord is included without plug)
Power consumption
 5KW Max.
Heating elements
 Fe-Cr-Al Alloy doped by Mo
Heating zone length
  • Three zones: 610mm (24") in total
  • Z1 - Z2 - Z3：152.4mm (6") + 304.8mm (12") + 152.4mm (6")
  • +/-1ºC Constant Temperature Zone: 260 mm length
  • +/-2ºC Constant Temperature Zone: 480 mm length (click the pic below for detail)
Fused Quartz Tube
Quartz Tubes
 Model: OTF-1200X-III-S-UL-60
60 O.D x 55 I.D x 1200 L  (mm)		 Model: OTF-1200X-III-S-UL-80
80 O.D x 72 I.D x 1200 L (mm)		 Model: OTF-1200X-III-S-UL-100
101 O.D x 92 I.D x 1200 L (mm)		 Model: OTF-1200X-III-S-UL-5
130 O.D x 122 I.D x 1200 L
Warning: The tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.12 Mpa (absolute pressure)
Heating temperature
  • Max. Heating Temperature: 1200°C (<1 hour)
  • Continuous Heating Temperature: 1100°C
  • Max. Heating Rate: 20°C/min
Temperature Controllers


  • Three MTE certified Temperature controller with 30 programmable segments
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without an attendant.
  • +/- 1 ºC temperature accuracy.
  • Three K-type thermocouples (one for each zone).
  • RS485 Communications Port.
European Temperature Controllers (optional upgrade)
  • 1 heating channel
  • 1 program of 8 or 24-segment
  • Alarm Relay: Form 'A' and Form ‘C’ built-in
  • Digital Communications: RS485
  • Temperature Accuracy:  ±  0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Vacuum Flange and Gauge

  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring  is Included
  • Default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum port（click bottom left picture to see details )
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level can reach 10E-2 torr by the quality mechanical vacuum pump and 10E-5 torr by a turbo pump
  • Optional:
    • You may choose a hinged type flange ( see pic below middle ) to make sample loading at easy.
    • You may order the digital molecular pump for a faster and better vacuum
    • You may order flange support to avoid tube rotating ( click Pic below right )

Dimensions
 800mm(L) x435mm(W) x 670 mm(H)
Net Weight
 ~70 kg
Shipping Dimensions 55"(L) x 45"(W) x 45"(H)
Shipping Weight 340lbs
Warranty
 One-year limited warranty with lifetime support. (Consumable parts such as processing tubes, o-rings, and heating elements are not covered by the warranty, please order the replacements at related products below.)
Laptop, software &l(Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial)  9ncluded
  • Labview Based Temperature Control System (EQ-MTS01) enables users to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Compliance

  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes
Operation Demo Video

STANDARD PACKAGE WITH FURNACE:
No.
 NAME
 Qty
 PIC
 OTF-1200X-III-S-60
 OTF-1200X-III-S-80
 OTF-1200X-III-S-4 OTF-1200X-III-S-130
1
 Fused quartz tube
 1 pc
EQ-QZTube-60GE-1200 EQ-QZTube-80D-48 EQ-QZTube-100

EQ-QZTube-125GE-1200
2
 Alumina fiber foam tube block
 2 pcs
EQ-F-T-block-52 EQ-F-T-block-70 EQ-F-T-block-92 EQ-F-T-block-125
3
 Hook for moving the sample 1 pc
EQ-FLG-kit-2 EQ-FLG-kit-2 EQ-FLG-kit-2 EQ-FLG-kit-2
4
 Metric Hex-wrenches
 1 set
√ √ √ √
5 Vacuum flanges 1 pair EQ-FL-60 EQ-FL-80 EQ-FL-101 EQ-FL-125

AVAILABLE OPTIONAL ACCESSORY:
Part No.
Description
Quick Link
EQ-MTS02 Computerized Temperature Control System
High vacuum station (Mechanical pump + turbo molecular pump.)
Gas mix station (Float flow meter / Mass flow meter) (2, 3, 4channels selectable)
Compact Flow Meter (float flow meter/mass flow meter)
EQ-QBlock-90 90mm O.D heat-insulating quartz block
Quartz Boats /crucible /container /sample holder
EQ-FM-Cart
Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
