Multi Purpose Precision 8" Polishing Machine with Fixed Yoke & Complete Accessories - EQ-Unipol-810
Important Notice
This is our archived version of MTI old website.
Price, inventory, and technical information IS NOT accurate. Please do not use them as factors for purchasing decisions.
Please navigate our new web MTI's New Website. Thank you for your understanding! |
|
|
In stock
Item Number: EQ-Unipol-810
Transported by LTL Freight (Truck)
|

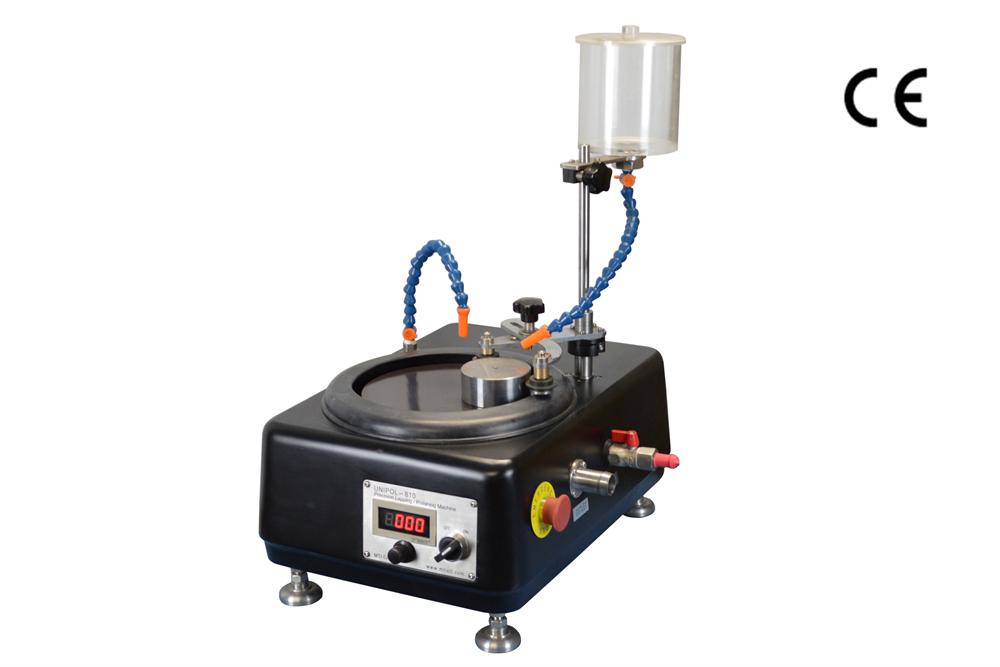

UNIPOL 810 polishing machine is equipped with 8" super flat Aluminum lapping plate and one work sample support, as well as complete diamond lapping accessories. It can be used as a standard manual grinder, or automatic lapping/polishing machine for both flat sample and metallographic samples. It is the most cost-effective solution for a material research lab.
SPECIFICATIONS
| Power |
AC 110V and 208-240V (50/60Hz) switchable for worldwide operation
( Voltage sawitch is in the back of the machine)
|
| Motor |
0.25 KW high torque DC motor |
Features |
- Heavy-duty cast aluminum case with the painting surface
- Belt drive with high torque and quiet operation
- 8" dia Super flat lapping plate
- Condition ring with one 75 mm dia flat sample holder for lapping polishing flat component
- 3" dia. flat sample holder for polishing flat sample
- 75 mm dia. sample holder with three holes to allow polishing three metallographic samples up to 1" dia. at one time, which is available as optional
- Yoke without swing to allow polishing automatically
|
| Variable speed |
0 - 600 RPM |
| Plate Run-off |
< 5 micron |
| Dimensions |
525 L x 350 W X325 H (mm) |
| Approx. net weight |
55 Kg (120 lbs) |
| Shipping Dimensions |
40" x 30" x 35" |
| Shipping Weight |
160 lbs |
Accessories |
- Two 8" PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding
- Two 8" PSA polishing pads for final polishing
- 10g 0.5 micron diamond paste for faster polishing
|
Optional |
- 3" Sample Holder with 3 Holes 1" diameter round mount and two weights
- 2" Polishing Fixture for Precision / Automatic Thinning and Polishing is available (click pic left-2 to order)
- Accessory equipment (slurry feeder, carrier/chuck, thickness meter, weights, etc) Click to enter
- Consumables for polishing/lapping/grinding (sandpaper, pad, plate, slurry, molding, coolant, etc). Click to enter
     |
| Compliance |
|
| Operation Instructions |
   |
| Shipping weight |
63 kg (140lbs ) |
Warranty |
- One year limited with lifetime support
- Rusting and damage due to improper storage condition or maintenance are not covered by warranty
|
STANDARD PACKAGE
|
|
|
|
|
|
|
|
Sale Price: Starting at USD$349.00
|
|
